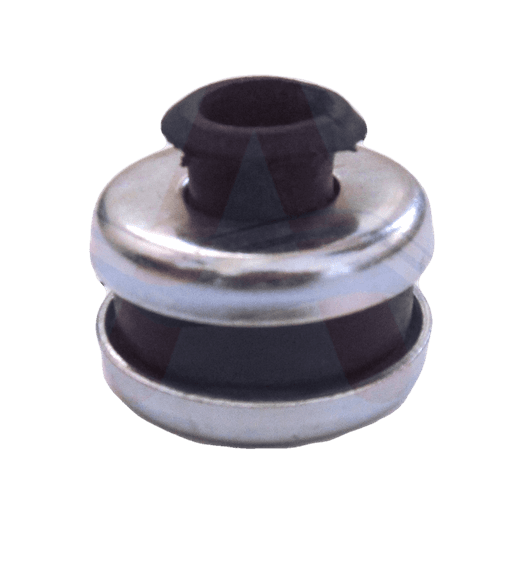

RHM-1xx Rubber Hanger
RHM-1xx Rubber Hangers are designed to suspend HVAC units and isolate vibration and noise. The metal caps help provide even load distribution. The rubber incorporates a projected collar to prevent metal to metal contact between the rod and bracket. These hanger can be used without the metal caps if needed.
Applications
Fans coil units
Air handling units
Fans
Pipes
Ducts
Features
Significant vibration and noise reduction
Extended rubber collar prevents metal to metal contact
Galvanized steel cups
Downloads
ANDRE_RubberHangers_RHM - Submittal.pdf
ANDRE_RubberHangers_RHM-1xx.pdf
Specification
MODEL | LOAD RANGE (LBS) | DEFLECTION (INCHES) |
|---|---|---|
| RHM-101 | 200 - 300 | 1/4 |
| RHM-102 | 100 - 200 | 1/4 |
