SH-0xx Spring Hanger

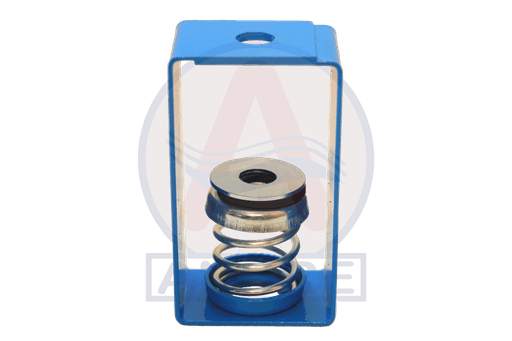

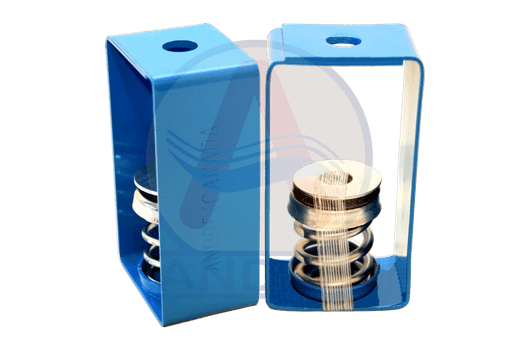

SH series spring hangers are steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Applications
Fan Coil Units
Air Handling Units
Fans
Pipes
Ducts
Features
Bracket: Blue Powder Coated
Spring: Hot Dip Galvanized
Design allows angular hanger misalignment
Hanger Rods and Nuts not included
Isolator Selection Range: (-)30% to (+)15% of Rated Load
Downloads
ANDRE_SpringHangers SH-0xx Submittal.pdf
ANDRE_SpringHangers_SH_0xx.pdf
Specification
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (Stripe) |
|---|---|---|---|---|---|
| SH-011 | 20 | 30 | 0.75 | Silver | Blue |
| SH-012 | 44 | 66 | 0.75 | Silver | Red |
| SH-013 | 69 | 105 | 0.75 | Silver | Yellow |
| SH-014 | 99 | 150 | 0.75 | Silver | White |
| SH-015 | 149 | 225 | 0.75 | Silver | Black |
