SHE-0xx Spring Hanger

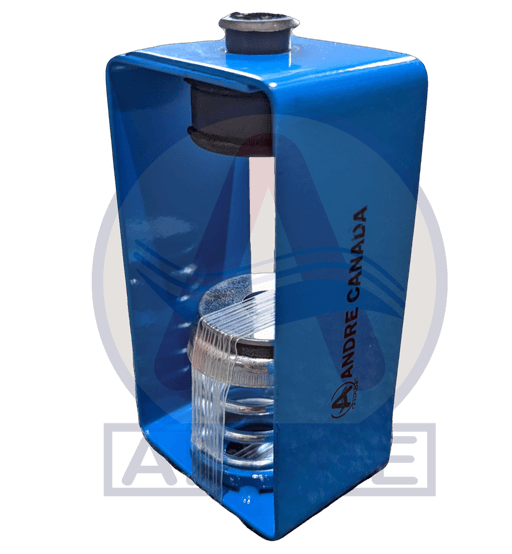

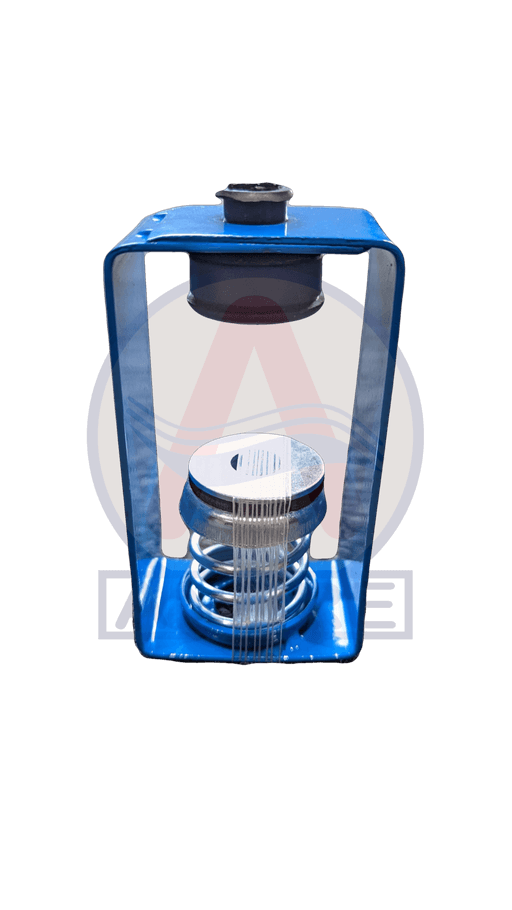

SHE series spring hangers are steel springs housed in rectangular steel brackets. The assembly incorporates dual (Steel and Elastomer) washers for uniform load distribution and high frequency isolation. These spring hangers are normally used in critical areas where noise and vibration need to be controlled. Springs have 50% additional travel to max load as per ASHRAE recommendations.
Applications
Features
Bracket: Blue Powder Coated
Spring: Hot Dip Galvanized
Top Element: Neoprene
Design allows angular hanger misalignment
Hanger Rods and Nuts not included
Isolator Selection Range: (-) 30% to (+)15% of Rated Load
Downloads
ANDRE_SpringHangers SHE-0xx Submittal.pdf
ANDRE_SpringHangers_SHE_0xx.pdf
Specification
MODEL | RATED LOAD (LBS) | MAX LOAD (LBS) | MAX DEFLECTION (INCH) | COLOR (MAIN) | COLOR (STRIPE) |
|---|---|---|---|---|---|
| SHE-011 | 20 | 30 | 0.75 | Silver | Blue |
| SHE-012 | 44 | 66 | 0.75 | Silver | Red |
| SHE-013 | 69 | 105 | 0.75 | Silver | Yellow |
| SHE-014 | 99 | 150 | 0.75 | Silver | White |
| SHE-015 | 149 | 225 | 0.75 | Silver | Black |
