Seismic Restraint Cable Kit
SCK Seismic Cable Restraint Kit consists of galvanized steel cables sized specifically to resist seismic loads and to provide all-directional restraint for various equipment. Restraint kits are used to protect ductwork, piping suspended fans, in-line HRVs, suspended heaters and various other suspended equipment from forces generated during seismic events. Restraints have been tested and rated against seismic, wind, or blast forces on different kinds of equipment.
Applications
Suspended Piping
Suspended Electrical Services
Suspended Equipment
Suspended Ductwork
Features

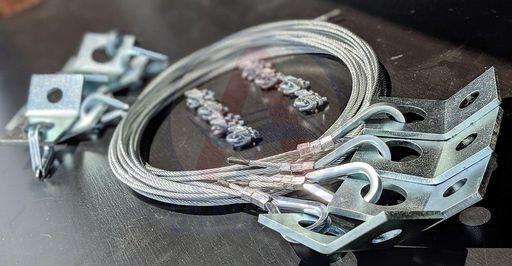

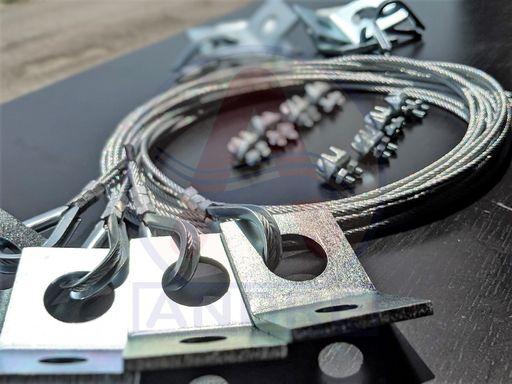

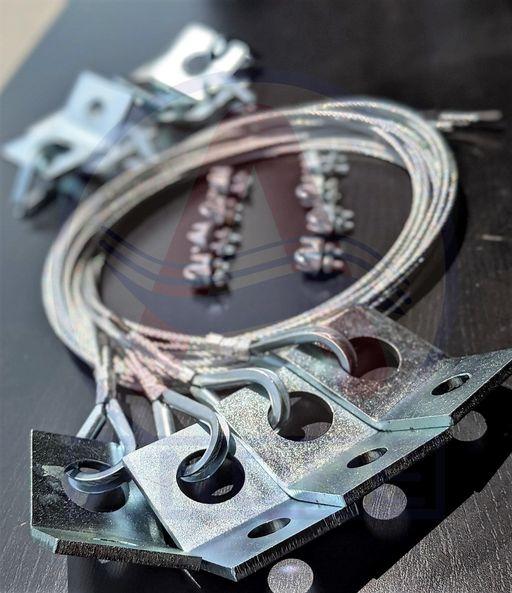

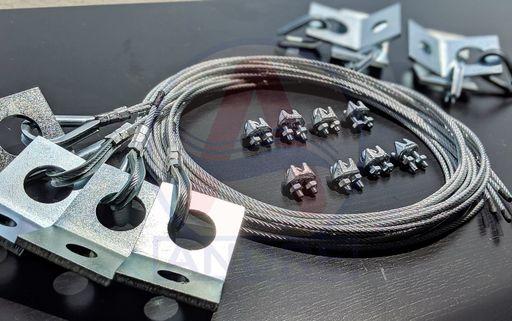

• Materials: Galvanized Steel (Other materials available, optionally) • Design allows flexible installation on all rotating angles • Kits are supplied with a fully adjustable end • Max loads are based on 45o installation angle • One (1) kit comprises of two (2) cables assemblies • One (1) cable assembly includes: o (10FT) 7 x 19 Galvanized Aircraft Cable o (4) U-Clips o (2) Thimbles o (2) 45o Angle Brackets • Hanger Rods and Nuts not included
Downloads
ANDRE_SeismicCableKit_SCK.pdf
ANDRE_Seismic Cable Kit SCK - Submittal.pdf
Specification
MODEL | CABLE SIZE (INCH) | MAX TENSILE LOAD (LBS) | CABLE LENGTH (FEET) |
|---|---|---|---|
| SCK-1/16 | 1/16 | 144 | 10 |
| SCK-1/8 | 1/8 | 610 | 10 |
| SCK-3/16 | 3/16 | 1260 | 10 |
| SCK-1/4 | 1/4 | 2100 | 10 |
| SCK-3/8 | 3/8 | 4320 | 10 |
