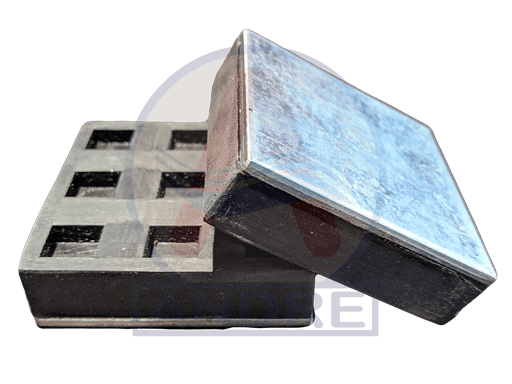

NSN/SN Anti-Vibration Rubber Pads
Neoprene Steel Neoprene Pads are designed to reduce vibration and noise from HVAC-R equipment. The rubber pads come in waffle design on both sides. They can be used for both indoor and outdoor use.
Applications
Pumps
Motors
Air Conditioning Units
Generators
Fans
Chillers
Cooling Towers
Features

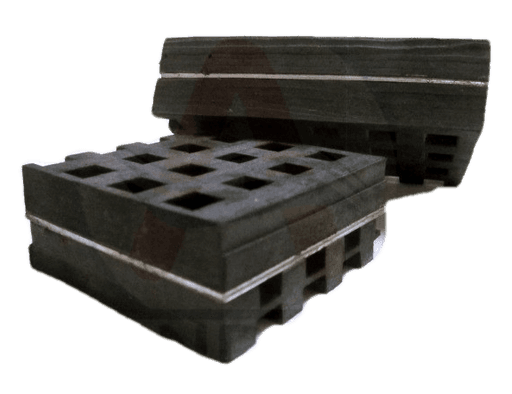

Multi-layers waffle neoprene pads separated by a galvanized steel plate for uniform load distribution
No bolting required
Simple field installation
Custom multi-layers pads can be made for increased vibration and noise control
Load Range: 75 to 200 LBS/IN2
Maximum Deflection: 0.15 inch
Downloads
ANDRE_RubberPads_NSN-SN-Submittal.pdf
ANDRE_RubberPads SN_NSN.pdf
Specification
MODEL | SIZE (INCH) |
|---|---|
| NS-2.25x2.25 | 2.25x2.25x5/8 |
| NSN-2.25x2.25 | 2.25x2.25x1 1/8 |
